| 브랜드 이름: | Greenson |
| 모크: | 1 |
| 가격: | $700000-$800000 |
| 지불 조건: | 신용장, 티/티 |

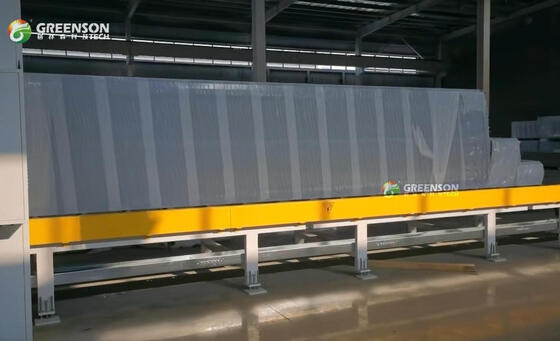

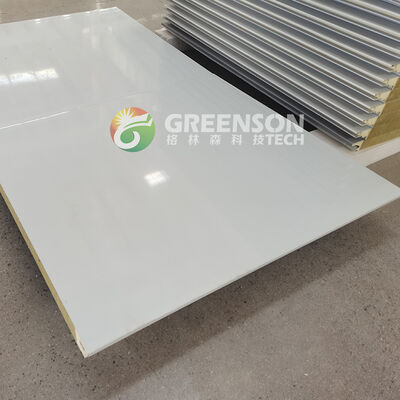

This advanced production line features a rational structure, complete functionality, and easy operation. Designed for manufacturing high-quality rock wool sandwich panels through a fully automated continuous process.

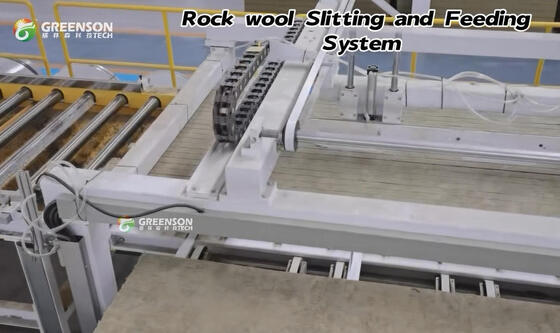

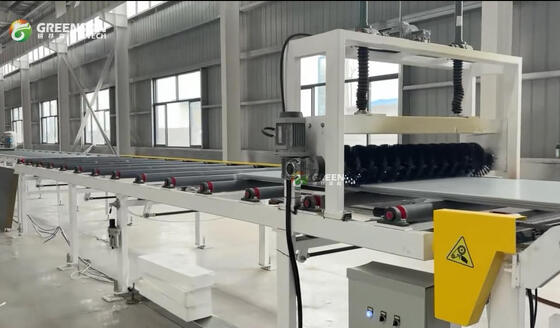

Complete automated workflow including feeding, profiling, gluing, heating, trimming, grooving, and cutting. Features precision low-speed metering pump with computer-controlled frequency regulation, accurate dosing, and stepless speed adjustment capabilities.
This production line can produce various flat and corrugated sheet types with the following specifications:
| Material Type | Color steel sheet; Galvanized sheet; Aluminum sheet |
|---|---|
| Material Thickness | 0.3-0.8 mm |
| Material Width | ≤1250 Mpa |
| Suitable Panel Length | 2000-18000 mm |
| Suitable Panel Width | 500-1200 mm |
| Suitable Panel Thickness | 30-250 mm (excluding corrugation height) |
| Production Speed | 3-15 m/min (Adjustable) |
| Valid Length of Double Belt Conveyor | 12000-42000 mm |
| Work Pressure on Pouring Foam | 150-200 Bar |
| Total Power | 660 kW / 300 kW |
| Total Dimensions | 130000 * 15000 * 6000 mm (Length * Width * Height) |
