PUF PIR PU Rock Wool Sandwich Panel Machine Production Line with 3-15m/min Adjustable Speed 40-300mm Thickness and 950-1200mm Width

브랜드 이름:	Greenson
모크:	1
가격:	$790000
지불 조건:	신용장, 티/티

자세한 정보

제품 설명

자세한 정보

원래 장소:

허베이

제품명:

PUF PIR PU 암면 샌드위치 패널 기계 생산 라인 제조업체

예어:

기계장치를 만드는 PU PIR 널 기계에게 연속적으로 3-15m/min 조정가능한 속도 자동을 선을 만드는 폴리우레탄 샌드위치 패널

원래 장소:

중국 허베이

색상:

고객의 요구 사항

OEM:

예

특징:

전자동

포장 세부 사항:

플라스틱 필름

파견항:

천진

애플리케이션:

벽, 지붕 및 칸막이

사용:

건물 단열 재료

제품 설명

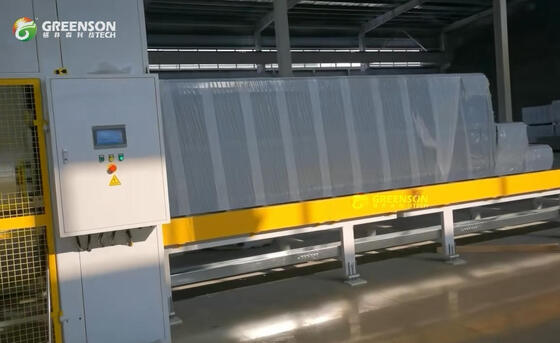

PUF PIR PU Rock Wool Sandwich Panel Machine Production Line Manufacturer

Product Overview

This advanced production line features a rational structure, complete functionality, and easy operation. Designed for manufacturing high-quality rock wool sandwich panels through a fully automated continuous process.

Production Process

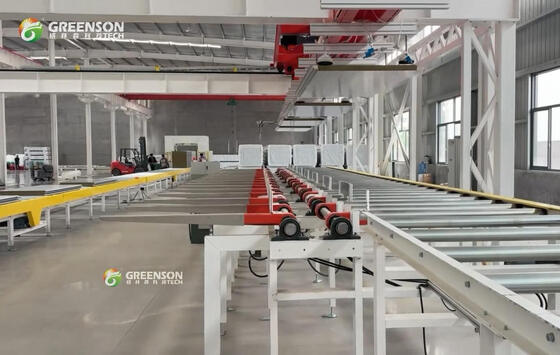

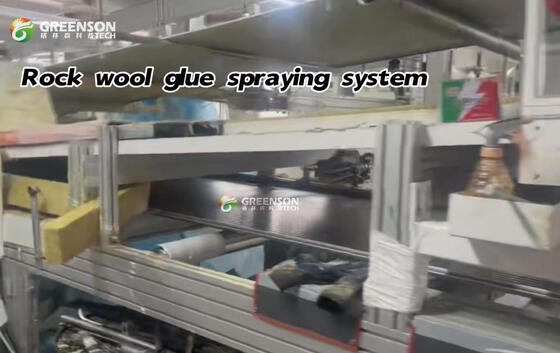

Complete automated workflow: feeding, profiling, gluing, heating, trimming, grooving, and cutting
Precision low-speed metering pump with computer-controlled frequency regulation
Accurate dosing and stepless speed adjustment capabilities

Product Capabilities

Produces various flat and corrugated sheet types
Sandwich panels: thickness 40-300 mm, width 950-1200 mm
High-strength corrugated composite boards: thickness 40-300 mm, width 950-980 mm
Compatible with color steel plates, aluminum plates, stainless steel plates, and other sheet materials

Technical Specifications

Material Type	Color steel sheet; Galvanized sheet; Aluminum sheet
Material Thickness	0.3-0.8 mm
Material Width	≤1250 Mpa
Suitable Panel Length	2000-18000 mm
Suitable Panel Width	500-1200 mm
Suitable Panel Thickness	30-250 mm (excluding corrugation height)
Production Speed	3-15 m/min (Adjustable)
Valid Length of Double Belt Conveyor	12000-42000 mm
Work Pressure on Pouring Foam	150-200 Bar
Total Power	660 kW / 300 kW
Total Dimensions	130000 * 15000 * 6000 mm (Length * Width * Height)
