Fully Automatic High Capacity Variable Speed Continuous PU PIR Sandwich Panel Production Line

브랜드 이름:	Greenson
모크:	1
가격:	$700000-$800000
지불 조건:	신용장, 티/티

자세한 정보

제품 설명

자세한 정보

원래 장소:

허베이

제품명:

연속 폴리우레탄 PIR PU 샌드위치 패널 기계 생산 라인

예어:

불연속 및 연속 PU 성형 샌드위치 패널 생산 라인

색상:

고객의 요구 사항

포장 세부 사항:

플라스틱 필름

파견 항:

천진

핵심 구성 요소:

모터, 베어링

페이셜 레이어 소재:

도장 아연도금강판(PPGI) / Al-Zn 코팅강판

기판 두께:

0.3mm - 0.8mm

원래 장소:

중국 허베이

제품 설명

Continuous Polyurethane PIR PU Sandwich Panel Machine Production Line

Product Overview

This production line is engineered for the continuous manufacturing of rock wool (mineral wool) sandwich panels, primarily utilized in industrial construction requiring stringent fire-safety ratings. The system integrates decoiling, cold-roll forming, rock wool strip flipping, automated adhesive application, and high-temperature curing to ensure structural integrity and thermal consistency across large-scale production runs.

Fully Automatic: Effortlessly produces high-quality sandwich panels
High Capacity: Handles large-scale production with efficiency
Variable Speed: Adjusts to match production needs for optimal output
Multiple Material Options: Suitable for color steel sheets, galvanized sheets, and aluminum sheets
Guaranteed Quality: Equipped with video factory inspection and mechanical test reports

Production Process

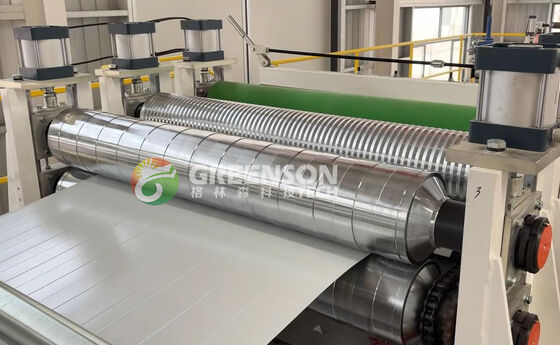

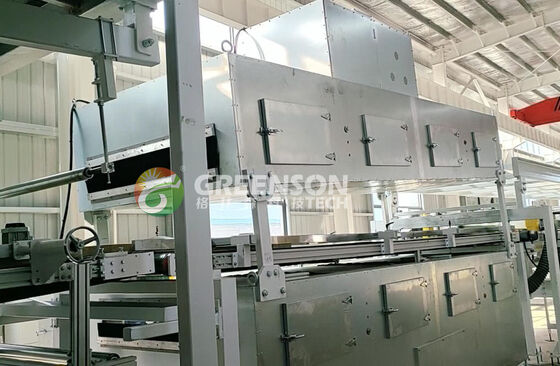

Complete automated workflow: feeding, profiling, gluing, heating, trimming, grooving, and cutting
Precision low-speed metering pump with computer-controlled frequency regulation
Accurate dosing and stepless speed adjustment capabilities

Product Capabilities

Produces various flat and corrugated sheet types
Sandwich panels: thickness 40-300 mm, width 950-1200 mm
High-strength corrugated composite boards: thickness 40-300 mm, width 950-980 mm
Compatible with color steel plates, aluminum plates, stainless steel plates, and other sheet materials

Technical Specifications

Material Type	Color steel sheet; Galvanized sheet; Aluminum sheet
Material Thickness	0.3-0.8 mm
Material Width	≤1250 mm
Suitable Panel Length	2000-18000 mm
Suitable Panel Width	500-1200 mm
Suitable Panel Thickness	30-250 mm (excluding corrugation height)
Production Speed	3-15 m/min (Adjustable)
Valid Length of Double Belt Conveyor	12000-42000 mm
Work Pressure on Pouring Foam	150-200 Bar
Total Power	660 kW / 300 kW
Total Dimensions	130000 × 15000 × 6000 mm (Length × Width × Height)
