Fully Automatic PU Sandwich Panel Production Line Machine With 300kW Power and Adjustable Width

브랜드 이름:	Greenson
모크:	1
가격:	$700000-$800000
지불 조건:	신용장, 티/티

자세한 정보

제품 설명

자세한 정보

원래 장소:

허베이

제품명:

중국 300kw 힘을 가진 완전히 자동적인 PU 샌드위치 패널 생산 라인 기계

예어:

PUR PIR SIP 샌드위치 패널 건설자재 제작 기계

색상:

고객의 요구 사항

포장 세부 사항:

플라스틱 필름

파견 항:

천진

핵심 구성 요소:

지탱하는 PLC, 엔진, 모터, 펌프

페이셜 레이어 소재:

도장 아연도금강판(PPGI) / Al-Zn 코팅강판

기판 두께:

0.3mm - 0.8mm

원래 장소:

중국 허베이

보증:

1년

제품 설명

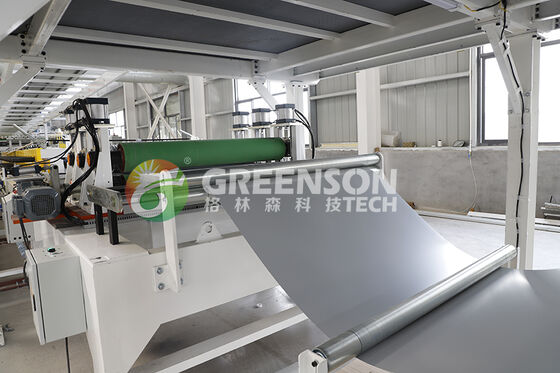

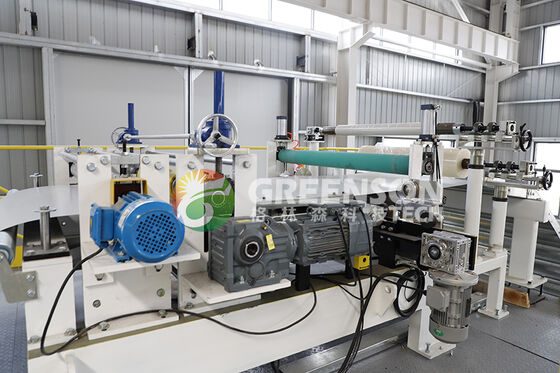

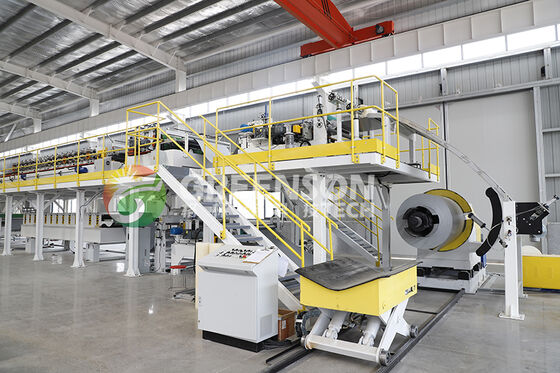

Fully Automatic PU Sandwich Panel Production Line Machine

This production line is engineered for the continuous manufacturing of rock wool (mineral wool) sandwich panels, primarily utilized in industrial construction requiring stringent fire-safety ratings. The system integrates decoiling, cold-roll forming, rock wool strip flipping, automated adhesive application, and high-temperature curing to ensure structural integrity and thermal consistency across large-scale production runs.

Production Process

Complete automated workflow: feeding, profiling, gluing, heating, trimming, grooving, and cutting
Precision low-speed metering pump with computer-controlled frequency regulation
Accurate dosing and stepless speed adjustment capabilities

Product Capabilities

Produces various flat and corrugated sheet types
Sandwich panels: thickness 40-300 mm, width 950-1200 mm
High-strength corrugated composite boards: thickness 40-300 mm, width 950-980 mm
Compatible with color steel plates, aluminum plates, stainless steel plates, and other sheet materials

Technical Specifications

Material Type	Color steel sheet; Galvanized sheet; Aluminum sheet
Material Thickness	0.3-0.8 mm
Material Width	≤1250 mm
Suitable Panel Length	2000-18000 mm
Suitable Panel Width	500-1200 mm
Suitable Panel Thickness	30-250 mm (excluding corrugation height)
Production Speed	3-15 m/min (Adjustable)
Valid Length of Double Belt Conveyor	12000-42000 mm
Work Pressure on Pouring Foam	150-200 Bar
Total Power	660 kW / 300 kW
Total Dimensions	130000 × 15000 × 6000 mm (Length × Width × Height)
