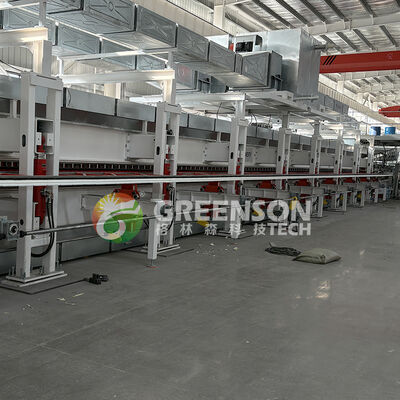

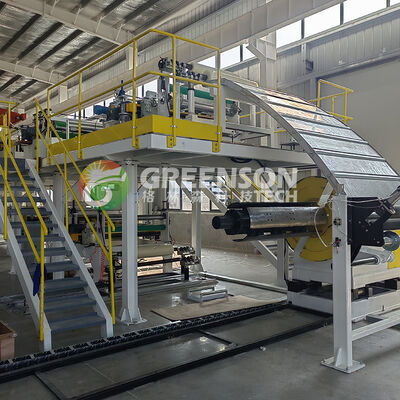

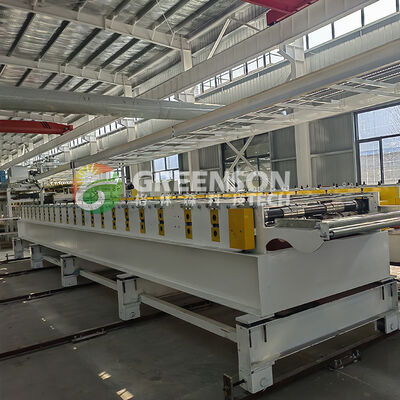

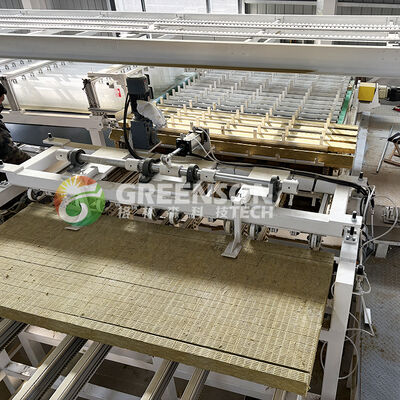

Customized Full-Automatic Rock Wool Sandwich Panel Production Line Easy To Operate

브랜드 이름:	Greenson
모크:	1
가격:	$790000
지불 조건:	신용장, 티/티

자세한 정보

제품 설명

자세한 정보

원래 장소:

허베이

제품명:

좋은 품질을 가진 주문을 받아서 만들어진 자동적인 바위 모직 샌드위치 패널 생산 라인

예어:

에너지 절약형 암면 샌드위치 패널 생산 라인 제조업체

색상:

고객의 요구 사항

특징:

전자동

포장 세부 사항:

플라스틱 필름

파견 항:

천진

핵심 구성 요소:

지탱하는 PLC, 엔진, 모터, 펌프

주요 판매 포인트:

작동하기 쉬움

애플리케이션:

지붕과 벽

전압:

380V 50Hz 3상(필요에 따라 변경 가능)

제품 설명

Customized Automatic Rock Wool Sandwich Panel Production Line With Good Quality

Product Overview

This advanced production line features a rational structure, complete functionality, and easy operation. Designed for manufacturing high-quality rock wool sandwich panels through a fully automated continuous process.

Production Process

Complete automated workflow: feeding, profiling, gluing, heating, trimming, grooving, and cutting
Precision low-speed metering pump with computer-controlled frequency regulation
Accurate dosing and stepless speed adjustment capabilities

Product Capabilities

Produces various flat and corrugated sheet types

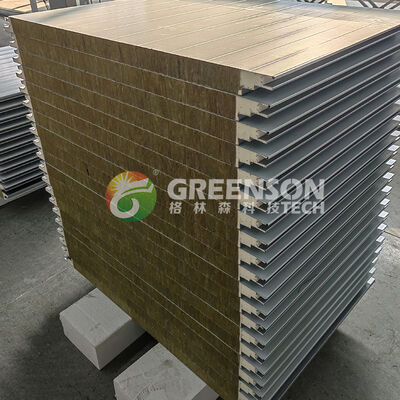

Sandwich panels: thickness 40-300 mm, width 950-1200 mm
High-strength corrugated composite boards: thickness 40-300 mm, width 950-980 mm
Compatible with color steel plates, aluminum plates, stainless steel plates, and other sheet materials

Technical Specifications

Material	Type: Color steel sheet; Galvanized sheet; Aluminum sheet Thickness: 0.3-0.8 mm Width: ≤1250 Mpa
Suitable Panel Size	Length: 2000-18000 mm Width: 500-1200 mm Thickness: 30-250 mm (excluding corrugation height)
Production Speed	3-15 m/min (Adjustable)
Valid Length of Double Belt Conveyor	12000-42000 mm
Work Pressure on Pouring Foam	150-200 Bar
Total Power	660 kW / 300 kW
Total Dimensions	130000 * 15000 * 6000 mm (Length * Width * Height)
