High Speed Energy Saving Fully Automatic Rock Wool Sandwich Panel Making Machine for Building Applications

브랜드 이름:	Greenson
모크:	1
가격:	$790000
지불 조건:	신용장, 티/티

자세한 정보

제품 설명

자세한 정보

원래 장소:

허베이

제품명:

판매를 위한 기계를 만드는 고속 에너지 절약 암면 샌드위치 패널

예어:

내화성 암면 패널 생산 라인

애플리케이션:

건물

색상:

고객의 요구 사항

OEM:

예

특징:

전자동

포장 세부 사항:

플라스틱 필름

파견 항:

천진

핵심 구성 요소:

지탱하는 PLC, 엔진, 모터, 펌프

주요 판매 포인트:

작동하기 쉬움

제품 설명

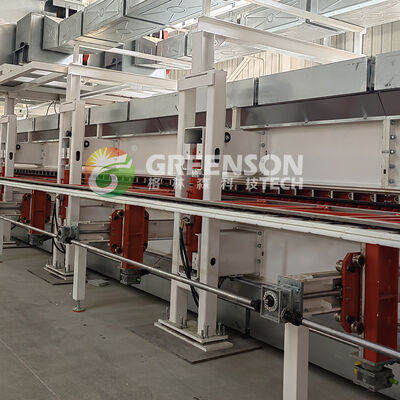

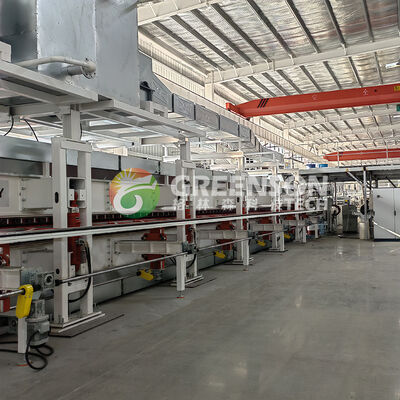

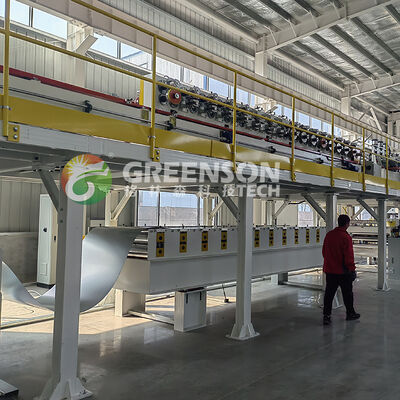

High Speed Energy Saving Rock Wool Sandwich Panel Making Machine For Sale

Product Overview

This advanced production line features a rational structure, complete functionality, and easy operation. Designed for manufacturing high-quality rock wool sandwich panels through a fully automated continuous process.

Production Process

Complete automated workflow: feeding, profiling, gluing, heating, trimming, grooving, and cutting
Precision low-speed metering pump with computer-controlled frequency regulation
Accurate dosing and stepless speed adjustment capabilities

Product Capabilities

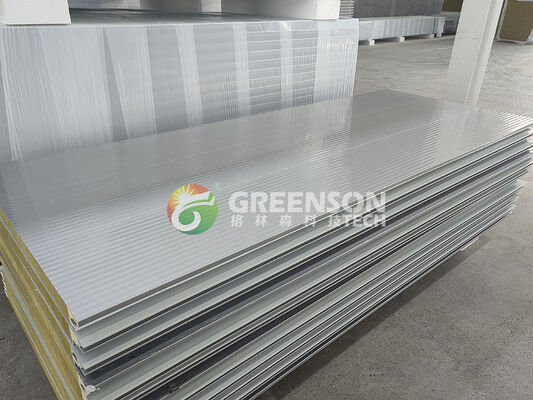

Produces various flat and corrugated sheet types
Sandwich panels: thickness 40-300 mm, width 950-1200 mm
High-strength corrugated composite boards: thickness 40-300 mm, width 950-980 mm
Compatible with color steel plates, aluminum plates, stainless steel plates, and other sheet materials

Technical Specifications

Material	Type: Color steel sheet; Galvanized sheet; Aluminum sheet Thickness: 0.3-0.8 mm Width: ≤1250 Mpa
Suitable Panel Size	Length: 2000-18000 mm Width: 500-1200 mm Thickness: 30-250 mm (excluding corrugation height)
Production Speed	3-15 m/min (Adjustable)
Valid Length of Double Belt Conveyor	12000-42000 mm
Work Pressure on Pouring Foam	150-200 Bar
Total Power	660 kW / 300 kW
Total Dimensions	130000 * 15000 * 6000 mm (Length * Width * Height)
