Automatic Gypsum Board Lamination Machine with 15m/min Laminating Speed and 1300mm Effective Width for PVC Laminated Gypsum Ceiling Tiles

Automatic Gypsum Board Lamination Machine with 15m/min Laminating Speed and 1300mm Effective Width for PVC Laminated Gypsum Ceiling Tiles

브랜드 이름: LVJOE
모델 번호: LV-1300FM01
모크: 1 줄
가격: US $20000-200000
지불 조건: 신용장, 티/티
공급 능력: 년 당 20 세트/세트
자세한 정보
원래 장소:
헤베이, 중국 (본토)
인증:
CE Certification
제품명:
건설 기계 제조 기계 건식 벽체 석고 타일 적층용 장비 기계 제작
예어:
PVC 적층 섬유 시멘트 보드 기계
전압:
380V
포장재:
PVC
무게:
7500kg
라미네이션 속도:
15m/분
피동형:
전기 같은
자동 등급:
오토매틱
포장 세부 사항:
나무 케이스
공급 능력:
년 당 20 세트/세트
강조하다:

15m/min Laminating Speed Gypsum Board Lamination Machine

,

1300mm Effective Laminating Width PVC Laminated Gypsum Board Machine

,

Automatic Operation Gypsum Ceiling Tile Production Line

제품 설명
Construction Machinery Manufacturing Equipment for Drywall Gypsum Tiles Lamination
Advanced manufacturing machinery for laminating decorative films onto gypsum board and similar materials to produce high-quality ceiling tiles.
Product Specifications
Voltage 380V
Packaging Material PVC
Weight 7500kg
Lamination Speed 15m/min
Driven Type Electric
Automatic Grade Automatic
Product Overview

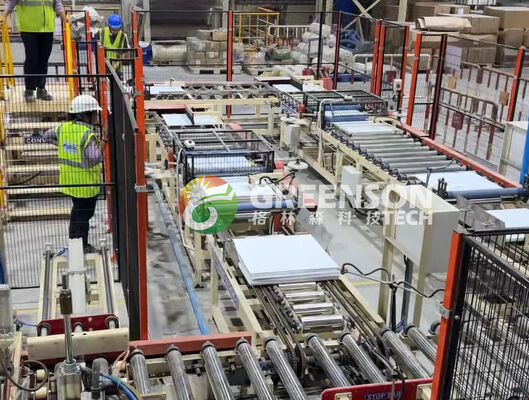

This waterproof corrosion-resistant gypsum board lamination machine applies decorative films including PVC film, aluminum foil, and wood grain patterns to gypsum board, MDF, PVC foam board, and similar substrates. The resulting PVC gypsum ceiling tiles feature a paper-faced gypsum core with PVC surface layer and aluminum foil backing. These environmentally friendly, lightweight panels offer superior fireproofing, waterproofing, and corrosion resistance - making them ideal for demanding environments including hotels, hospitals, schools, and industrial facilities.
Key Features
  • Alignment feeding system
  • Adjustable speed control
  • Integrated coating, laminating, conveying and sizing
  • User-friendly operation and maintenance
Technical Parameters
Effective laminating width Less than 1300mm
Sheet thickness 5-30mm
Laminating speed 15m/min
Speed adjustment Frequency conversion synchronous speed regulating
Installed power 4kw
