완전히 자동적인 박판 기계
Created with Pixso.

Fully Automatic Lamination Machine with 15m/min Laminating Speed and Automatic Board Feeding for Gypsum False Ceiling Cutting

Fully Automatic Lamination Machine with 15m/min Laminating Speed and Automatic Board Feeding for Gypsum False Ceiling Cutting

브랜드 이름: Greenson
모델 번호: 자동 PVC 베니어 석고 천장 기계
모크: 1
가격: $20000-200000
지불 조건: 신용장, 티/티
공급 능력: 6세트/년
자세한 정보
원래 장소:
헤베이
인증:
CE ISO
제품명:
중국 노동 및 재료 자원 감소 석고 거짓 천장 절단 기계
예어:
석고 틀린 천장 절단기
보드 수유 모드:
자동 (푸시 유형 type 흡입 유형) 선택 사항
라미네이팅 속도:
15m/분
보드 릴리스 모드:
집중된 운송 수송
적층 모드:
10 개의 레이어 (4 개의 패키지/레이어)
필름 소재:
PVC 필름, 알루미늄 호일, 장식 용지 등
보드 시트 자료:
석고 보드, PVC 폼 보드, 섹션 보드 등
보드 크기:
595*595*7-30mm 603*603*7-30mm 600*600*7-30mm 1200*600*7-30mm 1195*595*7-30mm
전압:
380V
공급 능력:
6세트/년
강조하다:

15m/min Laminating Speed Gypsum False Ceiling Cutting Machine

,

Automatic Board Feeding Fully Automatic Lamination Machine

,

10 Layers Stacking Mode Gypsum Ceiling Tile Production Line

제품 설명
Automatic PVC Veneer Plaster Ceiling Machine
This advanced PVC coated gypsum board ceiling production line significantly reduces labor and material resources while delivering high-quality false ceiling panels for interior decoration applications.
Technical Specifications
Product Name Automatic PVC Veneer Plaster Ceiling Machine PVC Coated Gypsum Board Ceiling Production Line
Board Feeding Mode Automatic (push type, suction type) optional
Laminating Speed 15m/min
Board Releasing Mode Stacking concentrated transportation
Stacking Mode 10 layers (4 packages/layer)
Film Material PVC film, aluminum foils, decorative paper, etc.
Board Sheet Material Gypsum board, PVC foam board, sectional board, etc.
Production Line Features
  • Multiple automatic levels available to suit different production needs
  • Siemens PLC control system for reliable operation
  • High annual production capacity of 2-6 million square meters
  • Compatible with gypsum board, PVC film, aluminum foil, and glue
  • Maximum effective laminating width: 1300mm
  • Handles sheet thickness from 5mm to 30mm
  • Frequency conversion synchronous speed regulation
  • Certified with ISO9001 and CE standards
Production Process
This plasterboard laminating machine processes paper-faced gypsum boards (6mm to 8mm thickness) by applying special glue on both sides, then laminating with PVC film and PET foil. The finished boards are cut to standard sizes (60×60mm) for use as false ceilings in interior decoration applications.
Automation Features
  • Simultaneous PVC film and PET foil lamination

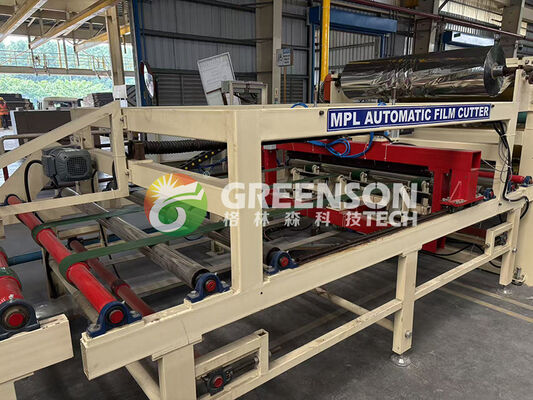

  • Automatic film and foil cutting system
  • Automatic side taping for finished edges

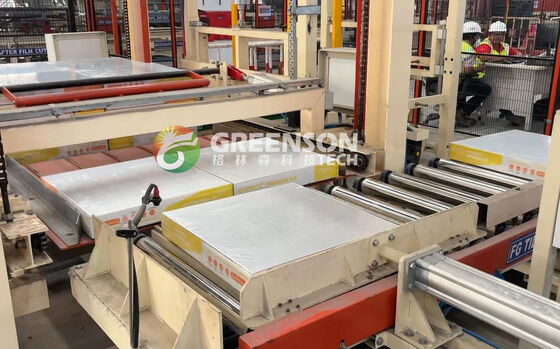

  • Integrated shrinking and packing system
  • PLC automatic control for precision operation
Automatic PVC Gypsum Ceiling Tiles Cutting Machine
This specialized equipment produces various plates through PLC-controlled automation. The system includes automatic push plate, routing, cutting, longitudinal cutting, and automatic palletizing functions, utilizing chain and sprocket transmission.
With advanced process technology, compact and reasonable structure, reliable operation, and elegant design, the finished plates are ideal for indoor decoration. The products offer moisture-proof, lightweight, soundproof properties with diverse specifications and beautiful decorative effects. Quick and easy construction makes this equipment essential for gypsum board factories, cabinet door board factories, and decorative material companies.
Applicable to various materials including MDF, fire board, and gypsum board partitions, this system has gained widespread market and customer approval.
