무기물 모직 널 생산 라인
Created with Pixso.

Customizable Automatic Rock Wool Production Line with 380V/50Hz Power Supply and 1 Year Warranty for 30-150mm Panel Thickness

Customizable Automatic Rock Wool Production Line with 380V/50Hz Power Supply and 1 Year Warranty for 30-150mm Panel Thickness

브랜드 이름: Greens
모델 번호: 바위 솜 생산 라인
모크: 1
가격: US $2000000-4000000
지불 조건: TT, LC
자세한 정보
원래 장소:
중국
제품명:
절연 솔루션을 위한 고급 맞춤형 자동 암면 생산 라인
예어:
미네랄 스톤 울 생산 라인
주요 과정:
원자재 공급 시스템, 용융 시스템 (큐폴라 퍼니스), 섬유 형성 시스템, 양모 셀립 팅 및 할당 시스템, 보드 형성 시스템, 절단 시스템, 자동 스태킹 및 포장 시스템
원자재:
현무암 ol Dolomite 、 슬래그
제어 시스템:
PLC
전원공급장치:
380V/50Hz
설치:
해외 기계 서비스가 가능한 엔지니어
보증:
1년
포장 세부 사항:
목재 상자 포장
강조하다:

380V/50Hz Rock Wool Production Line

,

1 Year Warranty Mineral Wool Board Production Line

,

30-150mm Panel Thickness Rockwool Panel Production Line

제품 설명
Advanced Customizable Automatic Rock Wool Production Line For Insulation Solutions

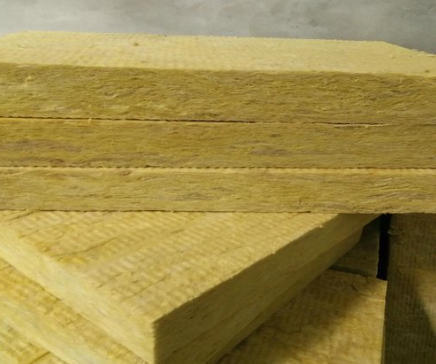

Rock wool board uses high-quality basalt as raw material whose melting point is above 1000 ºC, offering excellent heat insulation and sound absorption properties. It features fire resistance, pest proofing, corrosion resistance, stable chemical properties, and is asbestos-free for human safety.

Rock wool products are manufactured from premium basalt and dolomite. The production process involves high-temperature melting, centrifugal fiber formation using a four-axis centrifuge, and the addition of binders, dustproof oil, and water repellent. The fibers are collected, cured, and precisely cut using pendulum and three-dimensional fiber laying methods to create various rock wool products.

Key Advantages:
  • Lightweight with low thermal conductivity
  • Superior heat insulation and flame retardancy
  • Wide industrial applications
  • Customizable specifications for diverse needs
Product Name Rock Wool Production Line
Automatic Grade Automatic
Voltage 380V
Features Automatic
Panel Thickness 30-150mm
Felt Size 1000mm (adjustable)
Panel Density 30-200 Kg/m3
Applicable Industries Manufacturing Plant, Retail, Construction works
Finished Products Rock wool mattress and board
Usage Building Material Production
