석고 천장 도와 생산 라인
Created with Pixso.

Automatic 60x60cm PVC Coated Gypsum Ceiling Tile Making Machine with 1300mm Effective Laminating and 2-6 Million Sq.m/year Capacity

Automatic 60x60cm PVC Coated Gypsum Ceiling Tile Making Machine with 1300mm Effective Laminating and 2-6 Million Sq.m/year Capacity

브랜드 이름: LVJOE
모델 번호: 1300fm
모크: 1 줄
가격: US $20000-200000
지불 조건: l/c, t/t
공급 능력: 연간 10 줄
자세한 정보
원래 장소:
헤베이, 중국 (본토)
인증:
ISO CE
제품 이름:
기계를 만드는 자동/반자동 60x60cm 건식 벽체 Pvc 코팅 석고 천장 타일
예어:
PVC 적층 석고 보드 제조 기계
완성 된 보드 유형:
PVC 라미네이트 석고 보드
효과적인 라미네이팅:
1300mm
전기 제어:
PLC 시스템
생산 능력:
2~6백만 평방미터/년
애프터 판매 서비스:
서비스를 이용할 수있는 엔지니어
접착제 유형:
PVC 필름 용 물 접착제
포장 세부 사항:

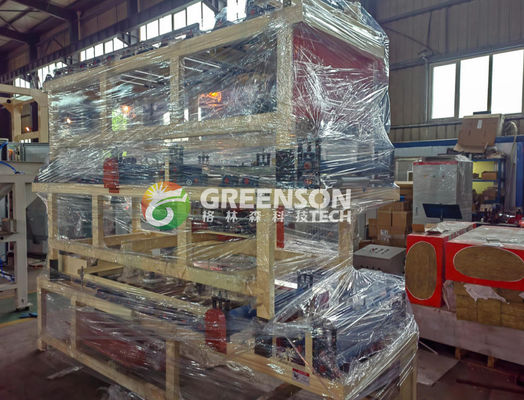

표준 포장
공급 능력:
연간 10 줄
강조하다:

60x60cm Gypsum Ceiling Tile Making Machine

,

1300mm Effective Laminating PVC Coated Gypsum Board Machine

,

2-6 Million Sq.m/year Gypsum Board Lamination Machine

제품 설명
Automatic/Semi-Automatic 60x60cm Drywall PVC Coated Gypsum Ceiling Tiles Making Machine
This advanced machine is designed for laminating fiber glass, paper, PVC film and aluminum foil on gypsum board to produce high-quality ceiling tiles and partition wall panels.
Key Specifications
Attribute Value
Finished board type PVC laminated gypsum board
Effective laminating 1300mm
Electric control PLC system
Production Capacity 2-6 million Sq.m/year
Speed 2-15m/min (adjustable)
After-sales Service Engineers available to service
Warranty 1 year
Glue type Water Glue for PVC film

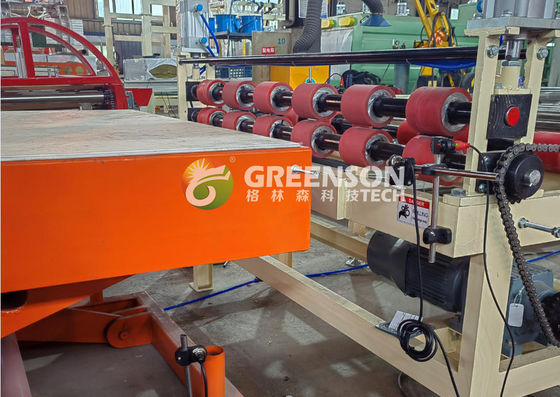

Automatic Gypsum Board Feeding Machine
  • Cylinder pushes gypsum board from stack lift platform to conveyor roll
  • Max. Load-bearing: 3000kg
  • Stroke: 1500mm
  • Min. Height: 620mm
  • Max. Height: 2000mm
  • Platform size: 1200*2400mm
Automatic Cutting Machine
  • Dual cutting system: vertical/longitudinal and horizontal cutting
  • Equipped with dust collector system
  • Converts 1.2*2.4m boards to 603*603mm/595*595mm tiles
  • Cutting speed: 15m/min
  • Cutting knives: Vertical/longitudinal: 3 blades; Horizontal: 5 blades
  • Overall power: 17.15KW
Technical Specifications
  • Sheet thickness: 5-30mm
  • Speed adjustment: Frequency conversion synchronous speed regulating
  • Annual capacity: 2-6 million Sq.m
  • Film material: PVC film, aluminum foils, decorative material
  • Board sheet material: PVC baseboard, gypsum board, wood board, sectional board, PVC foam board

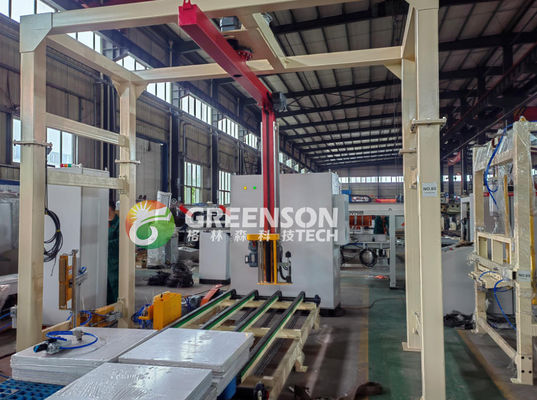

  • Stacking mode: 10 layers (4 packages/layer)
  • Cutting mode: Lengthways: 3 blades, Horizontal: 5 blades
  • Overall dimension: Length: 56000mm, Width: 9200mm
  • Lamination mode: Double side or single side options
