| 브랜드 이름: | LVJOE |
| 모델 번호: | LV-JB01 |
| 모크: | 1 세트 |
| 가격: | US $20000-200000 |
| 지불 조건: | L / C, T / T |
| 공급 능력: | 년 당 10의 선 |

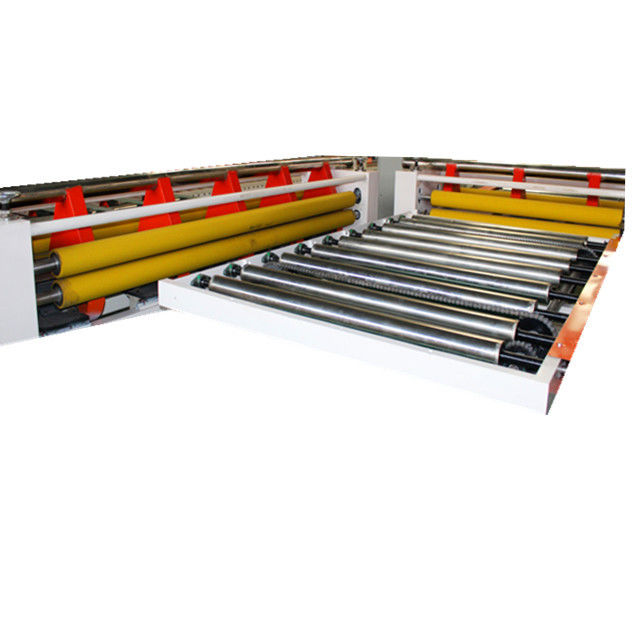

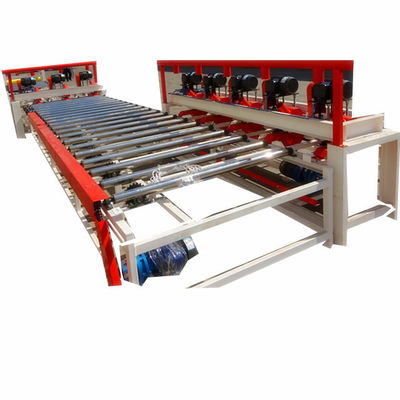

PVC Gypsum Ceiling Tile Make Machine in Construction by Automaic
Production introduction:
This equipment consist of two sets cutting system: vertical/longitudinal cutting and horizontal cutting, equipped dust collector system.
Usage and Feature:
This equipment is used to cut the plasterboard covered with the decorative films into small pieces according to the decoraticve specification, In the process of cutting, the electronic impulse style dust collector recycles the dust, reaching the puepose of the dust exhausting efficiently.
Cut the 1.2*2.4m big board to the 603*603mm/595*595mm small board.
Cutting knife: vertical/longitudinal:3 blades; horizontal : 5 blades
Appliacation board: PVC Gypsum Ceiling Tiles
PVC gypsum ceiling tile is made of paper-faced board with a layer of PVC on surface and aliminum foil on its back. it is a enviromental friendly, light weight, fireproof, waterproof and corrosion-resistant decorative ceiling board. it is easy to clean,and the patterns can be customized, it can be widely used in high fireproof and waterproof requirement enviroment, such as hotels, restaurants, shooping malls, theaters, stations,auditoriums, offices,living rooms, office buildings, electroic computer rooms, preision instrument rooms, and interior decoration of factories or houses.
|
Effective laminating width
|
1300mm
|
|
Sheet thickness
|
5-30mm
|
|
Laminating speed
|
15m/min
|
|
Speed adjustment way
|
Frequency conversion synchronous speed regulating
|
|
Electrical control
|
PLC
|
|
Annual capacity
|
2-4 million Sq.m
|
|
Film material
|
PVC film, aluminum foils, decorative material, etc.
|
|
Board sheet material
|
PVC baseboard, gypsum board, wood board,sectional board, PVC foam board,etc
|
Our service:
1. Our company has professional installation & debug teams. We will install and test the production line at the customers' place until the equipment produces the qualified products.
2. We supply the accessories all the year round. The guarantee time of the equipment is one year.
3. We are responsible for the technical consultation and service all the year around and solve all kinds of technical problems at any time.
4. We can help the customer to do the consignment and the relevant procedure for import and export.
5.If the buyer can not run the machine well then we will send the production engineers to help the buyer to run the machine, and we can cooperate for long terms.
